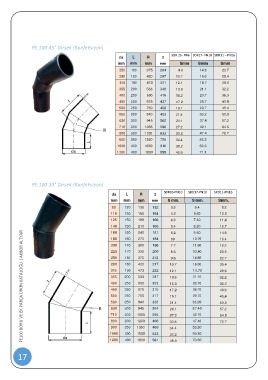

Page 18 - PE100 BORU VE EK PARÇA ÜRÜN KATALOĞU
P. 18
PE 100 45° Dirsek (Konfeksiyon)
SDR 26- PN6 SDR17- PN10 SDR11 – PN16
da L R z
mm mm mm mm Smm Smm Smm
250 180 375 284 9.6 14.8 22.7
280 1 80 420 297 10.7 16.6 25.4
315 190 473 321 12.1 18.7 28.6
355 200 533 348 13.6 21.1 32.2
400 250 600 416 15.3 23.7 36.3
450 250 675 437 17.2 26.7 40.9
500 250 750 458 19.1 29.7 45.4
560 250 840 483 21.4 33.2 50.8
630 300 945 562 24.1 37.4 57.2
710 300 1065 596 27.2 42.1 64.5
800 300 1 200 633 30.6 47.4 72.7
900 350 1350 725 34.4 53.3
1000 400 1500 816 38.2 59.3
1 200 400 1800 899 45.9 71.1
PE 100 30° Dirsek (Konfeksiyon)
da L R z SDR26-PN10 SRD17-PN10 SRD11-PN16
mm mm mm mm S mm. S mm. Smm.
90 120 135 132 3.5 5.4 8.2
110 150 165 164 4.2 6.60 10.0
125 150 188 166 4.8 7.40 11.4
140 150 210 168 5.4 8.30 12.7
PE100 BORU VE EK PARÇA ÜRÜN KATALOĞU | AKBOR ALTYAPI
160 160 240 181 6.2 9 50 14.6
180 160 270 184 69 10.70 16.4
200 170 300 196 7.7 11.90 18.2
225 170 338 200 8.6 13.40 20.5
250 180 375 213 9.6 14.80 22.7
280 180 420 217 10.7 16.60 25.4
315 190 473 232 12.1 1 8.70 28.6
355 200 533 247 13.6 21.10 32.2
400 250 600 303 15.3 23.70 36.3
450 250 675 310 17.2 26.70 40.9
500 250 750 317 19.1 29.70 45.4
560 250 840 326 21.4 33.20 50.8
630 300 945 384 24.1 37.40 57.2
710 300 1065 396 27.2 42.10 64.5
800 300 1200 406 30.6 47.40 72.7
900 350 1350 469 34.4 53.30
1000 400 1500 533 38.2 59.30
1200 400 1800 561 45.9 70.60
